A Comprehensive Guide to Planning and Building Padel Courts (Part 2)

Part One of this guide covered the essential groundwork for padel court projects – from distinguishing indoor vs. outdoor requirements to court dimensions, design types, and surface options. Part Two now delves deeper into critical technical and construction aspects: designing robust structural foundations, implementing effective lighting, navigating permitting processes, and planning for ongoing maintenance. The goal is to equip architects and first-time investors with detailed, practical guidance to ensure their padel court is built soundly, safely, and in compliance with all regulations.

Structural Foundations and Base Construction

A padel court is only as solid as the foundation beneath it. The court’s base must safely support the heavy structure (steel frame and glass walls often totaling 3–4 tons) and remain level and stable over time. Foundation design will differ for indoor vs. outdoor courts, but in all cases it demands careful engineering.

Indoor vs. Outdoor Foundations

An indoor court typically sits on a simple reinforced concrete slab with a screed surface – around 18–20 cm thick – that provides a flat, solid platform. Since an indoor facility is sheltered from wind and rain, the slab’s job is mainly to prevent settling and give a true playing surface. Outdoor courts, by contrast, face wind loads and weather. Thus, outdoor foundations often include deeper footings or a perimeter beam for extra stability. A common approach is a concrete ring beam encircling the court, about 40 cm wide and extending down to the local frost line. This buried footing anchors the court’s columns and resists wind uplift. The interior of the court can then be filled with well-compacted gravel or a drainage layer, and topped with the playing surface. In any design, perform a geotechnical survey of the soil upfront – soft or shifting soil may require soil improvement or deeper foundations to prevent uneven settling.

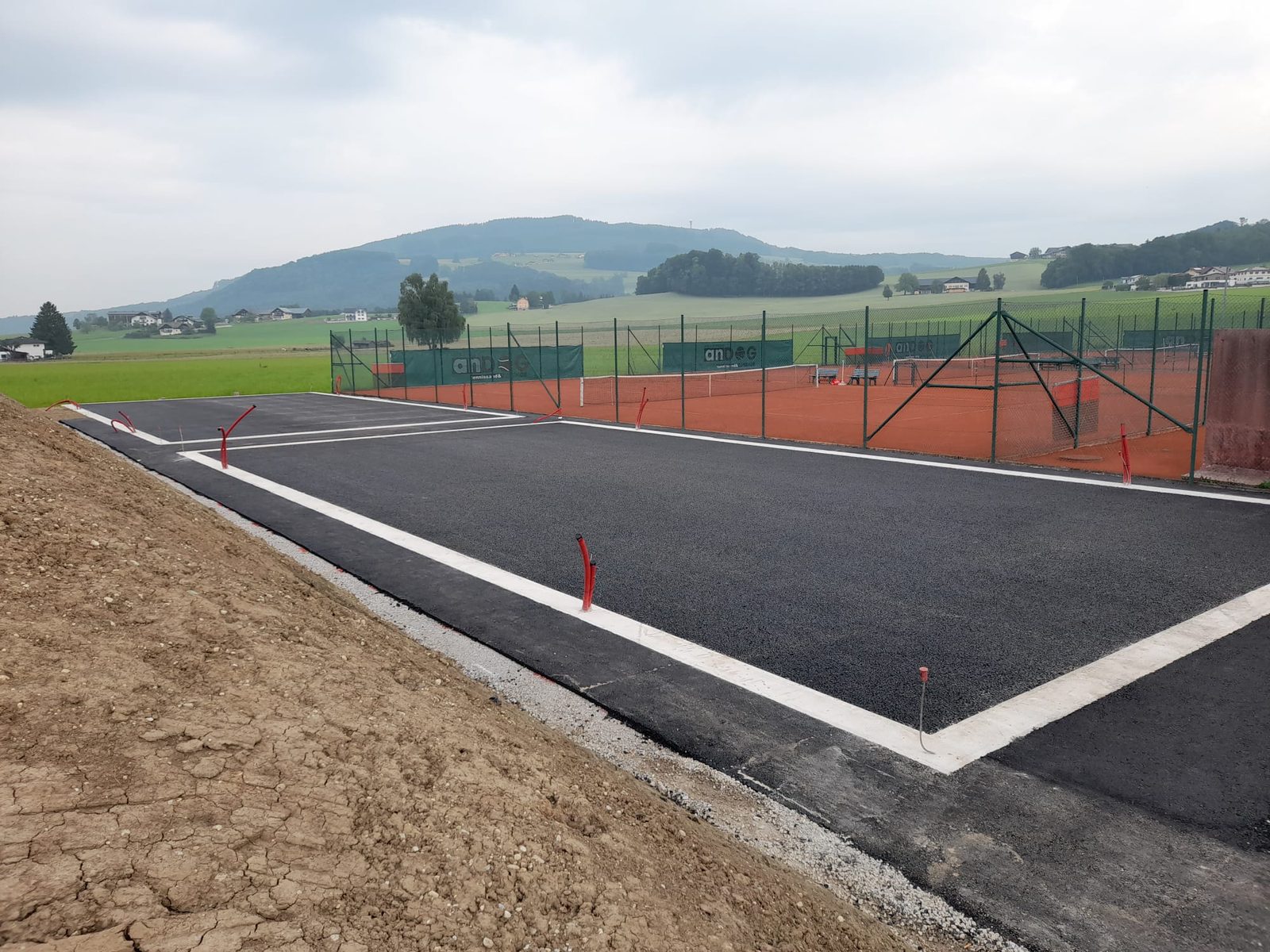

Drainage Considerations for Outdoor Courts

Good drainage is critical for outdoor padel courts, ensuring the court is playable again quickly after rainfall. Common practice is to grade the court slab with a slight slope of about 0.5–1% to direct rainwater off the surface. For example, a 0.5% lateral slope across a 10 m width means ~5 cm height difference – barely noticeable to players but enough for runoff. Usually courts use a porous top surface (porous asphalt or pervious concrete) that lets water seep through to a gravel drainage bed beneath. Perforated drain pipes around or under the court then carry water away. The key is to never let water pool on or under the court – standing water can damage the turf, create slip hazards, and erode the foundation. If your site is in a flood-prone or heavy-rain area, plan extra drainage capacity (e.g. perimeter French drains, channel drains at gate openings) and consider elevating the court slightly. Conversely, indoor courts can be built perfectly level (since they won’t get rained on), but if they use an indoor sprinkler system or need occasional cleaning with water, ensure there’s a slight run-off or floor drain to avoid puddling.

Foundation Construction Best Practices

No matter the type, build the padel court base with quality materials and proper techniques. Use reinforced concrete with a screed (with steel rebar mesh) for any slab or beam elements to prevent cracks from load or temperature changes. If using a full slab, an 18–20 cm thick slab with steel mesh is recommended for strength. For a ring-beam design, pour the beam to the specified dimensions (e.g. 30×30 cm or larger) with structural concrete, and be sure to cast or drill in the anchor bolts that will hold the court’s columns. The sub-base beneath any concrete should be properly compacted crushed stone – remove all organic soil and compact the fill in layers to at least 95% Proctor density to prevent future settling. In cold climates, the footing must extend below frost depth per local code so that frost heave won’t lift and crack the slab. It’s wise to coordinate with a structural engineer or experienced sports contractor to choose the right foundation system for your soil and climate. Remember that investing in a sound foundation upfront will pay off with longevity: it keeps your court level (for true bounces), stable under players and wind, and dry throughout the seasons.

Lighting Considerations and Compliance

Quality lighting is essential for any padel court used indoors or at night. Good lighting design extends play hours and ensures fast-moving balls are always visible, but it must be balanced with efficiency and local lighting regulations. Here we outline how to get it right.

Illuminance and Layout

Padel court lighting must be bright and evenly distributed. For recreational or club play, industry guidelines recommend around 200 lux of horizontal illuminance on the court surface. Competitive or tournament play typically requires higher levels—on the order of 500 lux or more, with high uniformity (min-to-max ratio) ensuring there are no dark spots. Typically, an outdoor court is lit by four tall floodlight poles, two on each side, placed near mid-court or evenly spaced along the sides, generally about 6 meters high. Each pole carries multiple LED floodlight fixtures carefully aimed to cover the court uniformly. This classic four-pole setup (or an equivalent ceiling-mounted system for indoor courts) creates overlapping beams that effectively eliminate shadows. For safety and playability, fixtures should be mounted just outside the court enclosure (beyond the fence line) to avoid interfering with play or causing injury during high shots. For indoor installations, lights are usually suspended from the ceiling or roof structure. Here, placement must ensure players aren’t blinded when looking upward and fixtures aren’t struck by high balls. Indoors, LED tubes suspended above the court have proven particularly effective, providing excellent uniform illumination and virtually no glare effects.

Glare Control and Light Quality:

Because padel players frequently look upward (for lobs and bandejas), lighting must minimize glare. Modern sports lighting uses LED fixtures with engineered optics – such as asymmetric beam angles and visor shields – to direct light onto the court while cutting off upward or outward light spill. This means players see a well-lit court surface and ball, but aren’t staring into exposed bulbs. It also reduces light pollution affecting neighbors or the night sky. When selecting fixtures, opt for those specifically designed for tennis/padel courts that advertise low glare and controlled beam spread. Aim the lights carefully during installation (professional lighting suppliers can provide photometric studies to guide aiming). The color temperature of the lights (often LED in the 3000-4000 K range) should provide good contrast against the ball and walls, and a high CRI (color rendering index) to mimic daylight visibility. Also ensure energy efficiency and control: LED floodlights are standard now due to their efficiency and instant-on capability.

Compliance with Local Regulations

Outdoor lighting is often subject to local codes and community scrutiny. Many municipalities set limits on light trespass – for example, requiring that no more than a certain illuminance (in lux or footcandles) spills beyond your property line. It’s common to have rules that lights must be turned off by a certain hour at night (e.g. no lights after 10 PM) to preserve neighbourhood peace. When planning your court, research the local lighting ordinances early. If required, prepare a lighting plan or photometric report to submit with your permit application. Demonstrating that your design uses cut-off shields, appropriate pole heights, and will not shine into neighbours’ windows will greatly smooth the approval process. In some cases, projects have been denied due to resident complaints about glare, so proactively choosing low-spill fixtures and communicating your mitigation measures can prevent problems. Lastly, consider neighbourly practices even if not mandated: install smart systems (motion sensors or scheduling) so lights only operate when needed, and be prepared to limit evening operating hours to respect nearby homes. By designing your lighting for both performance and compliance, you’ll ensure excellent playability without legal headaches down the line.

Permitting Process and Building Code Compliance

Constructing a padel court is a building project that will typically require permits and adherence to local building codes. Navigating the permits and approvals process is crucial – unexpected regulatory hurdles can cause costly delays. Below are key considerations to streamline compliance with zoning, building, and safety regulations:

Zoning and Land Use

First, verify that your intended site is zoned for recreational or sports facility use. If it’s not, you may need to apply for a zoning variance or special use permit, which can be a lengthy process involving hearings and approvals. For example, building a padel court in a residentially zoned area might require a special exception or community board approval. Always start with an inquiry to the local planning/zoning department about your project and location.

Building Permits

Whether indoor or outdoor, you will need a building permit (or equivalent construction permit). Indoor courts often come with more complex requirements – if you’re constructing an enclosed building or roof over the courts, expect to submit architectural and structural plans addressing snow/wind loads, fire safety (e.g. sprinkler or fire alarm systems), occupancy limits, exits, and ventilation. Outdoor courts might seem simpler, but they can trigger their own concerns such as noise abatement, stormwater management, and lighting impact on the surroundings. Many locales treat a padel court’s foundation and fencing like any small building, so plans may need an engineer’s stamp and calculations (for instance, showing the foundation footing size and anchoring meet wind load requirements).

Permit Application and Reviews

Once you have your preliminary design, prepare a detailed site plan and building plan to submit with the permit application. This should include the court layout with dimensions, property setbacks, fence and lighting pole heights, parking or site access, drainage provisions, and possibly landscaping or noise mitigation measures. Submit these to the local building department for review, along with any required fees. Be prepared for the review process to take several weeks or even a few months. Officials will check compliance with all relevant codes – building codes, electrical codes (for lighting), plumbing (if adding drains or water), accessibility (e.g. ADA-compliant gate width or path if open to public), and any specific sports facility guidelines in your jurisdiction. It’s common to receive comments or requests for revisions; respond promptly to keep things moving. In some cases, especially if the project could impact neighbors, a public hearing or notification may be required – for example, if you’re adding tall lighting poles in a residential area, neighbors might be invited to comment. Make sure to factor these potential meetings and feedback cycles into your timeline.

Local Code Nuances

Every city or town can have unique rules. Some examples: limits on impervious surface area (which could affect how much area your court slab covers unless you use permeable materials), requirements for fencing height or style, noise ordinances that restrict evening play, or mandates for on-site restrooms or parking if it’s a commercial venue. Early in planning, consult with local building officials about any such local code variances you might need. It’s far easier to adjust your plans beforehand than to seek forgiveness later.

Common Delays and How to Avoid Them

One of the biggest causes of delay is incomplete or non-compliant submissions. Double-check that your plans include everything required (site drawings, engineering calcs, product specs for the court kit, lighting cut-sheets, etc.). Show that your design meets all standards – for instance, if the code requires a certain fence setback from property lines or a certain drainage capacity, make sure that’s indicated. Another common holdup is community objection – as mentioned, proactively addressing light and noise with mitigation measures and communicating these in your application can preempt opposition. If your project is on government or public land, additional layers of approval (parks department, city council, etc.) might be needed, so schedule extra time. Overall, start the permitting process early – many experts emphasize initiating contact with authorities at the project’s outset to flag any red tape as soon as possible.

Inspections and Final Approvals

After permit issuance and during construction, expect inspections at key stages. For example, an inspector may check the foundation forms and rebar before you pour concrete, or inspect the lighting installation for electrical code compliance. Keep all permits and inspection records on file. Once construction is complete, a final inspection will be conducted to issue a Certificate of Occupancy or equivalent sign-off that the court is safe and ready to use. Only after this final approval should you open the court to players. Operating without proper permits or failing inspections can lead to serious consequences – fines, or even a stop-work order or forced removal of the court. As a cautionary tale, building a padel court without the necessary permit or ignoring mandated building codes (like required emergency exit gates or safety glass specifications) can result in legal trouble and costly remediation. Diligent compliance from the start is the surest way to avoid these pitfalls and keep your project on track.



Ongoing Maintenance Best Practices

Once your padel court is built, a proactive maintenance plan will protect your investment and ensure players enjoy a top-quality experience for years. Padel courts require regular upkeep across several areas: the turf surface, glass walls, metal structure, and drainage system. Here are key maintenance practices for each:

Artificial Turf Surface

Remove debris like leaves, rocks, or dirt before play – accumulated debris can cause slippery spots and premature wear. Periodically inspect the turf for any tears or seams coming loose; repair any damage promptly to prevent it from worsening. Maintaining proper sand infill levels by monofilament turf(topping up the silica sand if low, or redistributing it from high spots to low spots) is crucial for consistent ball bounce and player footing.

Glass Walls and Enclosures

The tempered glass panels should be kept clean and clear for both gameplay and spectator visibility. Plan to clean the glass routinely (e.g. biweekly or monthly, depending on environment) using a non-abrasive glass cleaner and soft cloth or squeegee. Avoid harsh chemicals or anything that could scratch the glass or damage any anti-glare coatings. During cleaning, also inspect each glass pane and its mounting fixtures – look for any chips, or loosening of the bolts/clamps that hold the glass. Keeping the glass hardware tight and glass spotless not only preserves the aesthetics of your court, it prevents small issues from becoming big safety hazards.

Steel Structure and Hardware

Inspect the metal structure of the court regularly (at least every few months). This includes the steel frame posts, mesh fencing, connection bolts, and the net posts. Check that all structural bolts are tight – vibration and play can loosen hardware over time. It’s good practice to go around with a wrench and verify/tighten bolts (especially the anchor bolts to the foundation and the clamps holding glass panels) after the first few months of use, and annually thereafter. Also look for any signs of rust or corrosion on the steel components. Outdoor courts, in particular, should have galvanized or coated steel, but scratches or heavy wear can lead to rust spots. Wire brush any rust and touch up the area with a cold galvanizing compound or rust-proof paint as recommended by the manufacturer. Ensuring the frame’s protective coating is intact will maximize its lifespan. The net posts and net mechanism deserve attention too: confirm the posts are firm in their sockets and the nets can be tensioned properly. Replace frayed net cords and ensure the center strap (if any) is adjusted correctly. By keeping the “bones” of your court in shape – tight connections, rust-free steel, and a taut net – you’ll maintain a safe and professional playing environment.

Lighting and Electrical

The court’s lighting system also benefits from periodic checks. Schedule inspections of all light fixtures and electrical components (perhaps quarterly, or at least heading into the darker winter season). Replace any burnt-out bulbs or malfunctioning LED modules promptly to avoid uneven lighting on the court. Clean the glass lenses or LED panels of the floodlights – removing dust and cobwebs can improve brightness. It’s also wise to verify any automatic timers or smart controls are working correctly (so lights turn off on schedule and do not stay on all night by accident). For pole-mounted lights, do a visual check that the poles and mounting hardware are stable – high winds can sometimes loosen bolts. Keeping the lighting system in top condition not only ensures safe play, it also prolongs the life of your fixtures and conserves energy.

By following these maintenance practices diligently, you will extend the life of your padel court and preserve a high-quality playing experience. Most tasks can be handled in-house with basic equipment (brushes, gentle cleaners, wrench, etc.), but it’s also a good idea to have a professional inspection or service at least once a year. Specialists can perform a thorough check of tension on all bolts, professionally deep-clean the turf, and assess things like the state of shock pads or welds that might not be obvious to the untrained eye. Regular maintenance protects your investment and reduces long-term costs by addressing issues before they escalate. With a well-built and well-kept court, players will enjoy consistent bounce, clear sightlines, and safe play – the hallmarks of a top-notch padel facility.

Padel Courts Guide – Part 3:Complete Project Checklist from Start to Finish

Part 3 Preview: In the final part of this comprehensive guide, we will provide an extensive project checklist covering all stages from planning to post-construction. That checklist will serve as a practical tool to ensure no detail is overlooked as you plan and build your padel court. With the foundational knowledge from Parts 1 and 2 in hand, and the upcoming checklist, you will be well-equipped to turn your padel court project into a reality – on time, on budget, and built for success.
